Agent Patterns - Key Architectural Designs for Intelligent Systems

Overview

This catalogue presents core architectural patterns for building intelligent, agentic AI systems. Each pattern addresses different trade‑offs across latency, cost, complexity, specialization, safety, and extensibility. Use this guide to (a) pick the minimal viable pattern for an initial prototype and (b) understand how to layer patterns together as requirements grow (e.g., start with a Single Agent, add Tool-Use for capability, then Memory/RAG for context persistence, introduce Reflection for quality, Router for specialization, Supervisor for scale, and Human‑in‑the‑Loop for risk control).

Pattern Comparison Matrix

Pattern	Primary Purpose	Typical Latency	Architectural Complexity	Relative Cost	Strengths	Watch Outs
Single Agent	Direct responses	Low	Very Low	Low	Fast, simple	Limited scope, single failure point
Chain-of-Thought	Structured reasoning	Medium	Low	Medium	Explainability, better logic	Higher token usage
Tool-Using	Capability extension	Medium	Medium	Medium	Real-time data, accurate math	Tool selection & error handling
Memory / RAG	Context persistence & grounding	Medium	Medium	Medium	Personalization, reduced hallucination	Retrieval quality, storage/privacy
ReAct	Adaptive multi-step reasoning + action	High	Medium	High	Dynamic interaction, interpretable	Possible loops, cost
Human-in-the-Loop	Risk mitigation & compliance	Variable	Medium	High (human time)	Safety, auditability	Throughput bottleneck
Reflection	Self-quality improvement	High	Medium	High	Polished outputs, error reduction	Iteration overhead
Router	Intent-based specialization	Low–Medium	Medium	Optimizable	Domain specialization, resource efficiency	Misrouting risks
Supervisor (Hierarchical)	Complex task orchestration	High	High	High	Decomposition, parallelism	Coordination overhead

1. Single Agent Pattern

A single autonomous agent perceives its environment, reasons, and takes actions to achieve specific goals.

flowchart TD E[Environment] -- Perceive --> A[Single Agent] A -- Action --> E subgraph Agent A end

Use Cases

Customer FAQ automation: Handling common questions about products, services, or policies
Personal productivity assistants: Managing calendars, setting reminders, drafting emails
Content generation: Creating social media posts, product descriptions, or blog drafts
Simple data entry and form filling: Processing structured information without complex logic

Advantages

Low latency: Fast response times with minimal processing overhead
Cost-effective: Requires fewer computational resources and API calls
Easy debugging: Straightforward troubleshooting with single point of control
Quick deployment: Minimal setup and configuration needed

Limitations

Limited problem-solving scope: Struggles with multi-step or multi-domain problems
No specialization: Cannot leverage domain-specific expertise for different task types
Context window constraints: May lose important context in long conversations
Single point of failure: If the agent fails, the entire system stops

LangGraph Example

from langchain_openai import ChatOpenAI
from langgraph.graph import StateGraph, END
from typing import TypedDict
from IPython.display import Image, display


class AgentState(TypedDict):
    messages: list
    response: str

def agent_node(state: AgentState) -> AgentState:
    """Single agent that processes input and generates response"""
    llm = ChatOpenAI(model="gpt-5-mini")
    response = llm.invoke(state["messages"])
    return {"messages": state["messages"], "response": response.content}

# Build graph
workflow = StateGraph(AgentState)
workflow.add_node("agent", agent_node)
workflow.set_entry_point("agent")
workflow.add_edge("agent", END)

app = workflow.compile()

# Run
result = app.invoke({"messages": [{"role": "user", "content": "Hello!"}]})
print(result["response"])

# Print the graph
display(Image(app.get_graph(xray=True).draw_mermaid_png()))

Output:

Hi — hello! How can I help you today?

I can answer questions, draft or edit text, summarize, translate, help with coding or math, make plans, brainstorm, or anything else you need. What would you like to do?

Single Agent

Implementation Notes

Separate short-term conversational context (recent message list) from long-term memory (vector store of summarized interactions or domain documents). Do not blindly append all raw messages to persistent storage.
Consider a memory schema: {timestamp, role, content, tags, importance_score} to enable pruning and compliance filtering.
Add an embedding-backed summarization step for every N messages to reduce token growth.
Privacy: obtain explicit user consent before storing personally identifiable information. Encrypt sensitive memory at rest; define retention and deletion policy.
Fall back gracefully when retrieval returns low-similarity results (e.g., require a minimum similarity threshold and proceed without augmentation if not met).

2. Chain-of-Thought (CoT) Pattern

Agent decomposes complex problems into step-by-step reasoning for improved accuracy and interpretability.

flowchart TD E[Environment] -- Problem --> A[CoT Agent] A -- Step 1: Reasoning --> S1[Step 1] S1 -- Step 2: Reasoning --> S2[Step 2] S2 -- ... --> SN[Step N] SN -- Final Answer --> E subgraph Agent A end

Use Cases

Mathematical reasoning: Solving algebra, calculus, and word problems step-by-step
Code debugging: Breaking down error analysis into logical inspection steps
Legal document analysis: Systematically reviewing contracts or regulations
Medical diagnosis support: Following clinical reasoning pathways

Advantages

Improved reasoning quality: Forces systematic thinking and reduces logical errors
Explainability: Each step can be inspected and validated by humans
Error identification: Easy to pinpoint where reasoning went wrong
Better handling of edge cases: Explicit reasoning catches overlooked scenarios

Limitations

Higher token consumption: Generates more text, increasing API costs
Latency issues: Multiple reasoning steps add processing time
Prompt engineering complexity: Requires well-crafted prompts for best results
Potential for verbose outputs: Can generate unnecessarily long explanations

LangGraph Example

from langchain_openai import ChatOpenAI
from langgraph.graph import StateGraph, END
from typing import TypedDict, List
from IPython.display import Image, display


class CoTState(TypedDict):
    problem: str
    current_step: int
    reasoning_steps: List[str]
    final_answer: str

def cot_agent_node(state: CoTState) -> CoTState:
    """CoT Agent generates next reasoning step"""
    llm = ChatOpenAI(model="gpt-5-mini")
    current = state.get("current_step", 0)
    steps = state.get("reasoning_steps", [])

    if current == 0:
        # Generate all reasoning steps
        prompt = f"""Break down this problem into clear reasoning steps:
Problem: {state['problem']}

Provide 3-5 numbered reasoning steps."""
        response = llm.invoke(prompt)
        steps = [s.strip() for s in response.content.split('\n') if s.strip()]
        return {**state, "reasoning_steps": steps, "current_step": len(steps)}

    return state

def answer_node(state: CoTState) -> CoTState:
    """Generate final answer based on reasoning steps, use a even cheaper model"""
    llm = ChatOpenAI(model="gpt-5-nano")
    steps_text = '\n'.join(state['reasoning_steps'])
    prompt = f"""Based on these reasoning steps, provide the final answer:

{steps_text}

Final Answer:"""

    response = llm.invoke(prompt)
    return {**state, "final_answer": response.content}

# Build graph - reflects sequential flow: Problem -> Agent -> Steps -> Answer
workflow = StateGraph(CoTState)
workflow.add_node("cot_agent_node", cot_agent_node)
workflow.add_node("answer_node", answer_node)
workflow.set_entry_point("cot_agent_node")
workflow.add_edge("cot_agent_node", "answer_node")
workflow.add_edge("answer_node", END)

app = workflow.compile()

# Run with a complex multi-step problem
complex_problem = """A train leaves Station A at 9:00 AM traveling at 60 mph.
At 10:30 AM, it makes a 15-minute stop at Station B. After the stop, it continues
at 75 mph for 2 hours. Then it slows down to 50 mph for the remaining 90 minutes
until it reaches Station C. What is the average speed from Station A to Station C?"""

result = app.invoke({"problem": complex_problem})
print(f"Steps: {result['reasoning_steps']}")
print(f"Answer: {result['final_answer']}")

# Print the graph
display(Image(app.get_graph(xray=True).draw_mermaid_png()))

Output:

Steps:
[
    '1) Compute distances for each travel segment: first leg 1.5 h at 60 mph → 60×1.5 = 90 mi; second leg 2 h at 75 mph → 75×2 = 150 mi; third leg 1.5 h at 50 mph → 50×1.5 = 75 mi.',
    '2) Add distances: 90 + 150 + 75 = 315 miles total.',
    '3) Compute total time including the 15-minute stop: travel time 1.5 + 2 + 1.5 = 5.0 h, plus stop 0.25 h → total time = 5.25 h.',
    '4) Average speed = total distance / total time = 315 ÷ 5.25 = 60 mph.'
]
Answer: 60 mph

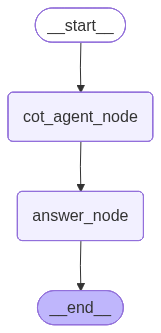

Cot Agent

Implementation Notes

Structured steps: ask for numbered steps and return as a JSON array for reliable parsing; separate reasoning from the final answer field.
Verbosity control: cap steps (e.g., 3–5) and request “minimal sufficient steps” to manage tokens and latency.
Determinism: set lower temperature for consistent reasoning; optionally enable a brief self-check before finalizing.
Privacy: avoid logging raw chain-of-thought to analytics; store only summaries or conclusions.
Guardrails: validate the final answer independently when possible (e.g., verify equations, run unit checks), not the rationale text.

3. Tool-Using Agent Pattern

Agent extends capabilities by calling external tools, APIs, or services for specialized tasks.

flowchart TD E[Environment] -- Perceive --> A[Tool-Using Agent] A -- Action --> E A -- Tool Call --> T[External Tool/API] T -- Result --> A subgraph Agent A end

Use Cases

Data retrieval and analysis: Querying databases, APIs, or data warehouses
Real-time information access: Fetching weather, stock prices, or news updates
Mathematical computations: Performing calculations beyond LLM capabilities
File system operations: Reading, writing, or managing files and directories

Advantages

Access to real-time data: Can retrieve current information beyond training cutoff
Accurate computations: Delegates math to specialized tools rather than approximating
Extensibility: Easy to add new capabilities by integrating additional tools
Reduced hallucination: Facts come from reliable external sources

Limitations

Tool selection challenges: Agent may choose wrong tool or use it incorrectly
Error handling overhead: Must manage failures from external tools gracefully
Security concerns: External tool access creates potential vulnerabilities
Latency from tool calls: Network requests add delay to response times

LangGraph Example

from langchain_openai import ChatOpenAI
from langchain.tools import tool
from langgraph.graph import StateGraph, END
from langgraph.prebuilt import ToolNode
from typing import TypedDict, Annotated
import operator
from IPython.display import Image, display


@tool
def calculator(expression: str) -> str:
    """Evaluates a mathematical expression"""
    try:
        return str(eval(expression))
    except:
        return "Error in calculation"

@tool
def number_formatter(number: str, format_type: str = "all") -> str:
    """Formats a number in different representations (binary, hexadecimal, scientific notation, etc.)

    Args:
        number: The number to format (as a string)
        format_type: The format to use - 'binary', 'hex', 'scientific', 'all' (default)
    """
    try:
        num = int(float(number))
        results = []

        if format_type in ["binary", "all"]:
            results.append(f"Binary: {bin(num)}")
        if format_type in ["hex", "all"]:
            results.append(f"Hexadecimal: {hex(num)}")
        if format_type in ["scientific", "all"]:
            results.append(f"Scientific: {num:.2e}")
        if format_type == "all":
            results.append(f"Decimal: {num:,}")
            results.append(f"Octal: {oct(num)}")

        return "\n".join(results)
    except:
        return f"Error formatting number: {number}"

class ToolAgentState(TypedDict):
    messages: Annotated[list, operator.add]

def agent_node(state: ToolAgentState) -> ToolAgentState:
    """Agent decides whether to use tools"""
    llm = ChatOpenAI(model="gpt-5-mini").bind_tools([calculator, number_formatter])
    response = llm.invoke(state["messages"])
    return {"messages": [response]}

def should_continue(state: ToolAgentState) -> str:
    """Route to tools or end"""
    last_message = state["messages"][-1]
    if hasattr(last_message, 'tool_calls') and last_message.tool_calls:
        return "tools"
    return "end"

# Build graph
workflow = StateGraph(ToolAgentState)
workflow.add_node("agent", agent_node)
workflow.add_node("tools", ToolNode([calculator, number_formatter]))
workflow.set_entry_point("agent")
workflow.add_conditional_edges("agent", should_continue, {
    "tools": "tools",
    "end": END
})
workflow.add_edge("tools", "agent")

app = workflow.compile()

# Run
result = app.invoke({"messages": [{"role": "user", "content": "Calculate 2^10 and then format that number in binary and scientific"}]})
print(result["messages"][-1].content)

# Print the graph
display(Image(app.get_graph(xray=True).draw_mermaid_png()))

Output:

2^10 = 1024

Binary: 0b10000000000
Scientific (normalized): 1.024 × 10^3 (or 1.024e+03)

Agent Tool Calling

Implementation Notes

Tool schema: bind tools with explicit argument schemas and validate inputs; reject unknown tool names to prevent hallucinated calls.
Selection reliability: request structured output (e.g., tool name + args JSON) rather than substring checks; enforce allowlists.
Error handling: add retries with backoff for transient failures; surface user-friendly errors and fallbacks.
Security: sandbox tool execution, redact sensitive data in logs, and set per-tool timeouts and quotas.
Performance: cache deterministic tool responses and batch/parallelize independent tool calls when safe.
